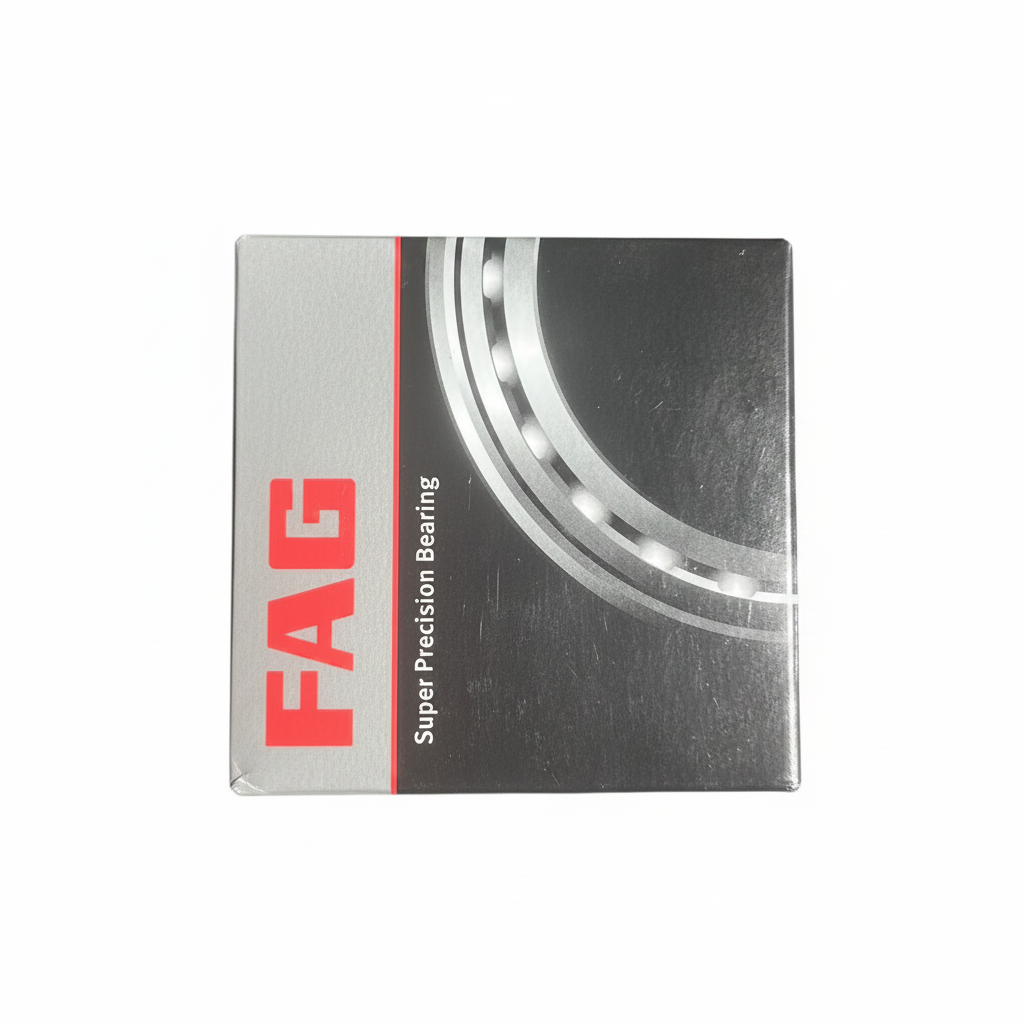

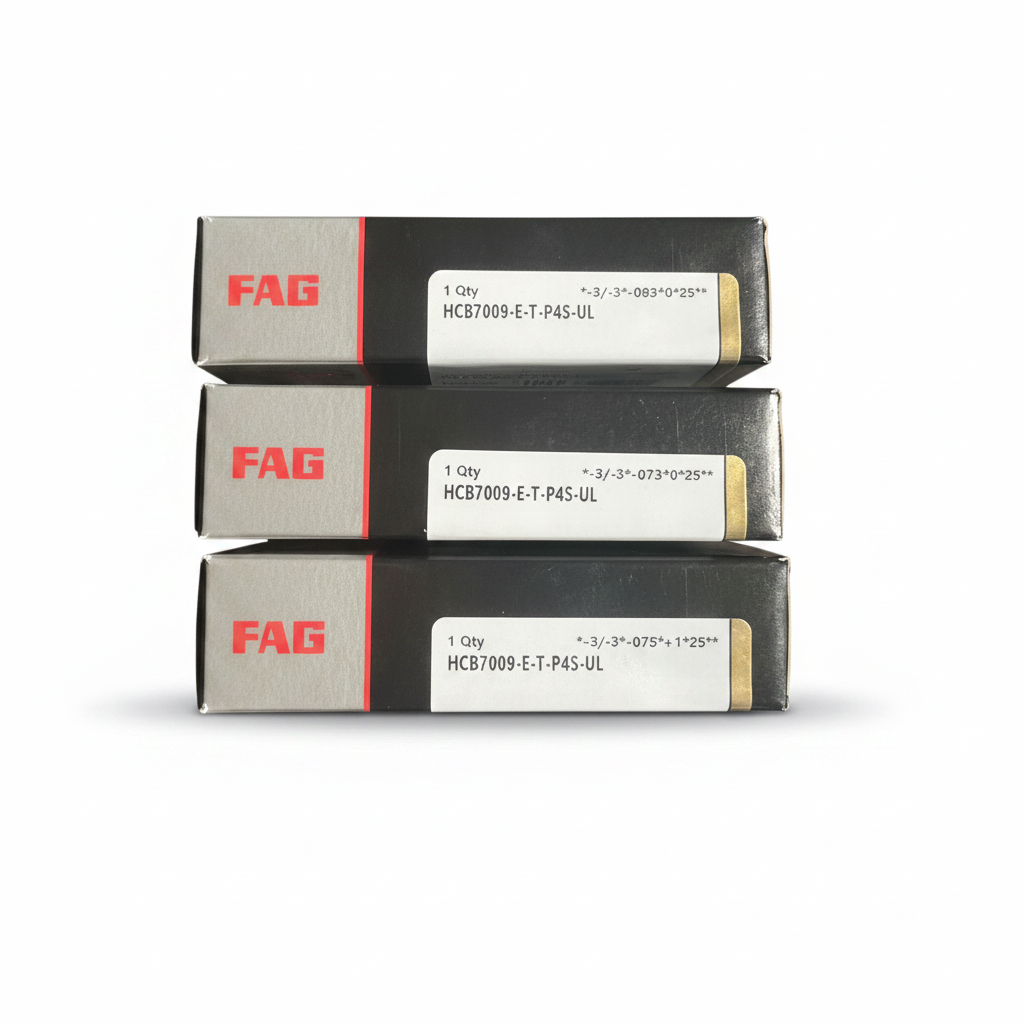

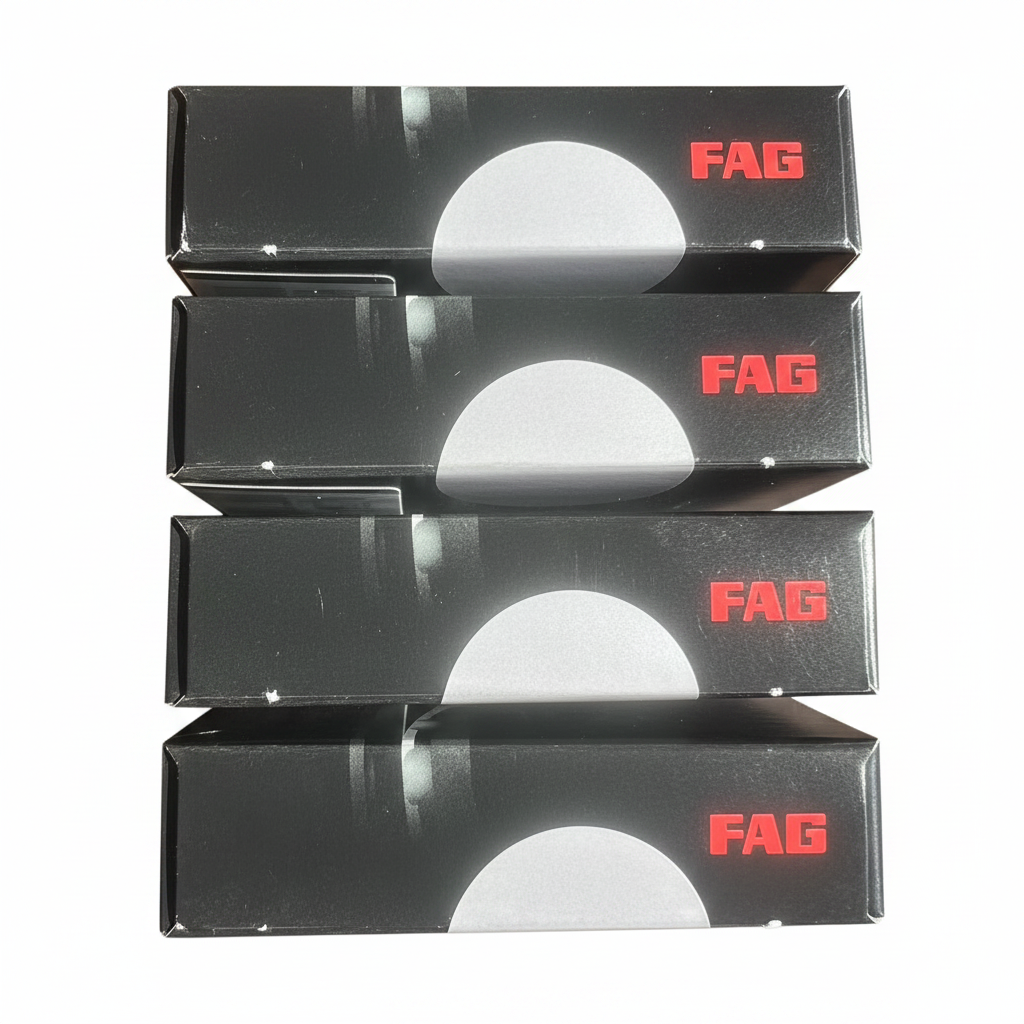

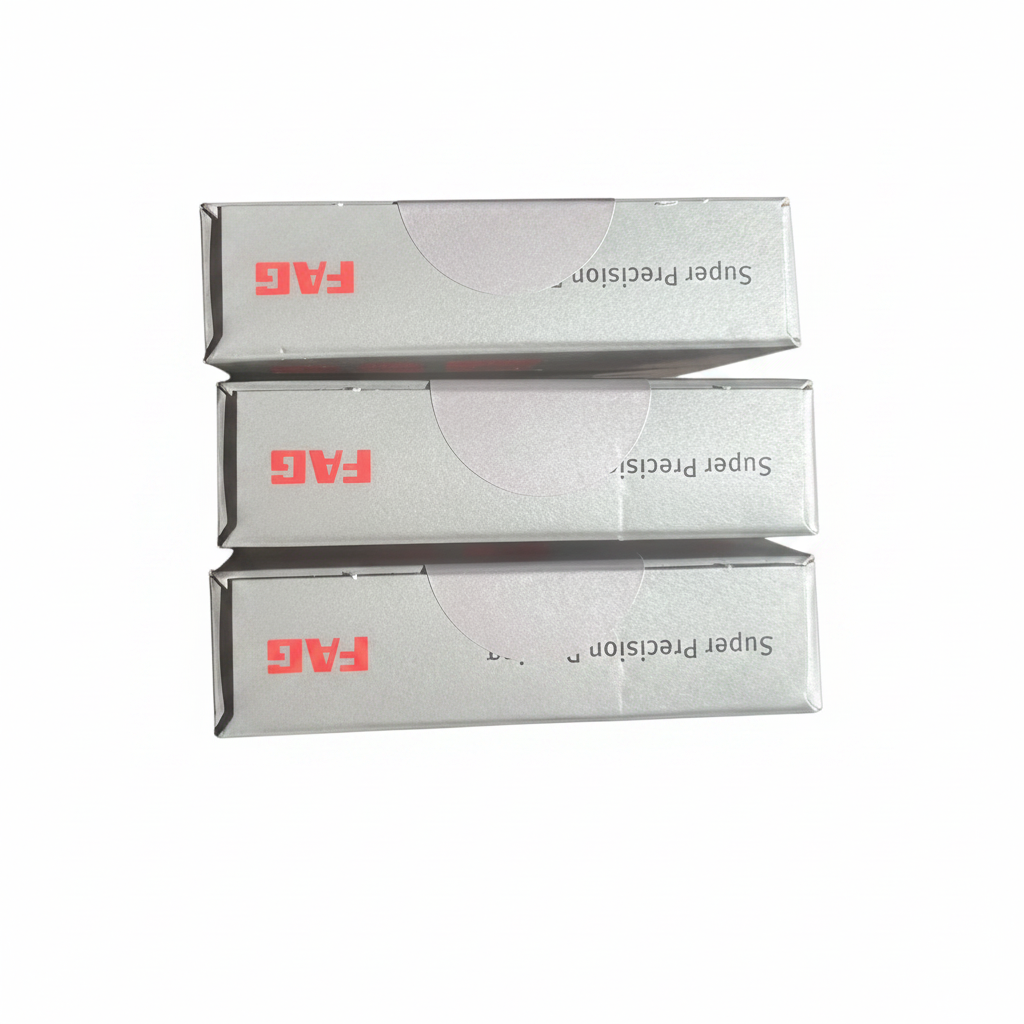

FAG HCB7009-E-T-P4S-UL Super Precision Angular Contact Ball Bearing
The FAG HCB7009-E-T-P4S-UL is a super precision angular contact ball bearing engineered for high-speed machine tool spindle applications. Manufactured by FAG (Schaeffler Group) in Germany, this bearing offers outstanding accuracy, low noise, and minimal heat generation — essential for precision CNC machining operations.
Specifications
-
Bore Diameter (d): 45 mm
-
Outer Diameter (D): 75 mm
-
Width (B): 16 mm
-
Contact Angle: 25° (E series)
-
Seal Type: Open (T designation — phenolic resin cage)
-
Precision Grade: P4S (ABEC-7 equivalent — super precision)
-
Lubrication: Greased for life (UL designation)
-
Origin: Made in Germany (FAG / Schaeffler Group)
Applications
CNC machining center spindles, grinding machine spindles, milling machine spindles, high-speed motorized spindles, precision lathes, coordinate measuring machines
